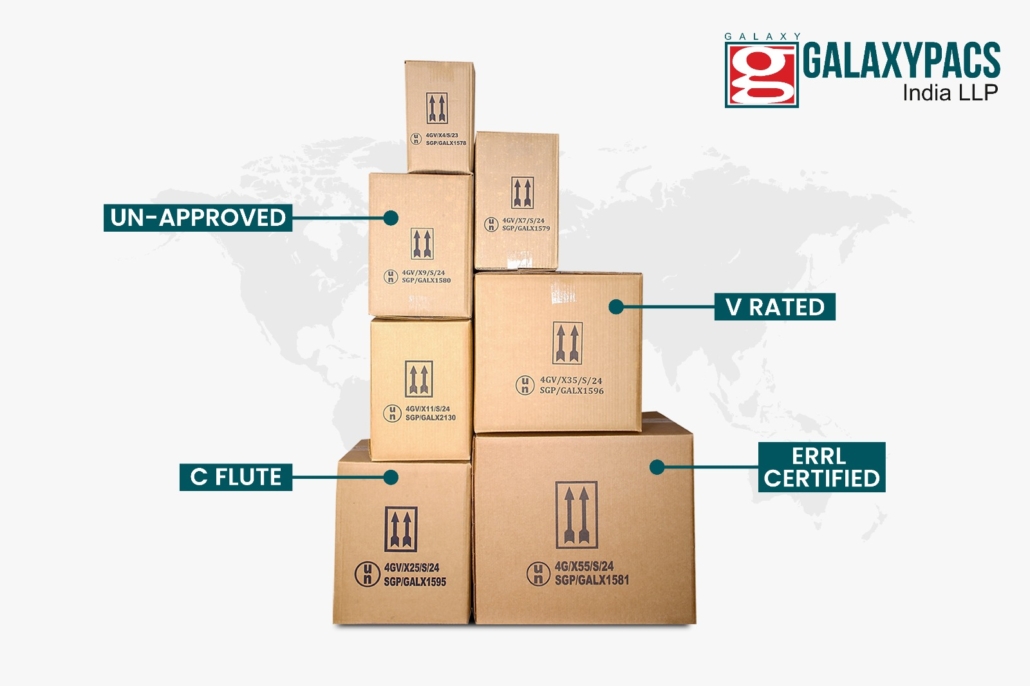

DG BOXES
UN APPROVED BOX
Our U.N. Approved Boxes are designed for 4GV Packaging to ship dangerous goods from Packing Groups I, II, III packed with inner containers containing solids or liquids, depending on the weight and regulation requirements of each material being contained.
Our DG Boxes are performance tested & certified by ERRL and are manufactured as per ICAO/IMDG 2021 compliance
4G – X55 UN APPROVED BOX
UN Certified Fibreboard Box for Dangerous Goods Packaging up to 55 kgs.
| External Dimensions (cms) | 62x42x53 (LxWxH) |
| Mass & Content | 55 Kgs |
| Measured Thickness | 7.8 mm |
| Manufacture Joints | Stapled Joints |
| Board Quality | 250x200x250x200x250 GSM |
| Method of Closure | Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape |
| Tested by | ERRL PTE LTD |
| UN Packing Type Code | 4GV Packing Group I (X) |
4GV X35 UN APPROVED BOX
UN Certified Fibreboard Box for Dangerous Goods Packaging up to 35 kgs.
| External Dimensions (cms) | 47x47x44 (LxWxH) |
| Mass & Content | 35 Kgs |
| Measured Thickness | 7.8 mm |
| Manufacture Joints | Stapled Joints |
| Board Quality | 250x200x250x200x250 GSM |
| Method of Closure | Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape |
| Tested by | ERRL PTE LTD |
| UN Packing Type Code | 4GV Packing Group I (X) |
4GV X25 UN APPROVED BOX
UN Certified Fibreboard Box for Dangerous Goods Packaging up to 25 kgs.
| External Dimensions (cms) | 38x38x45 (LxWxH) |
| Mass & Content | 25 Kgs |
| Measured Thickness | 7.8 mm |
| Manufacture Joints | Stapled Joints |
| Board Quality | 250x200x250x200x250 GSM |
| Method of Closure | Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape |
| Tested by | ERRL PTE LTD |
| UN Packing Type Code | 4GV Packing Group I (X) |
4GV X11 UN APPROVED BOX
UN Certified Fibreboard Box for Dangerous Goods Packaging up to 11 kgs.
| External Dimensions (cms) | 28x28x39 (LxWxH) |
| Mass & Content | 11 Kgs |
| Measured Thickness | 6.4 mm |
| Manufacture Joints | Stapled Joints |
| Board Quality | 250x180x250x180x250 GSM |
| Method of Closure | Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape |
| Tested by | ERRL PTE LTD |
| UN Packing Type Code | 4GV Packing Group I (X) |
4GV X7 UN APPROVED BOX
UN Certified Fibreboard Box for Dangerous Goods Packaging up to 7 kgs.
| External Dimensions (cms) | 23x23x37 (LxWxH) |
| Mass & Content | 07 Kgs |
| Measured Thickness | 6.4 mm |
| Manufacture Joints | Stapled Joints |
| Board Quality | 250x180x250x180x250 GSM |
| Method of Closure | Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape |
| Tested by | ERRL PTE LTD |
| UN Packing Type Code | 4GV Packing Group I (X) |
4GV X4 UN APPROVED BOX
UN Certified Fibreboard Box for Dangerous Goods Packaging up to 4 kgs.
| External Dimensions (cms) | 19x19x30 (LxWxH) |
| Mass & Content | 04 Kgs |
| Measured Thickness | 6.4 mm |
| Manufacture Joints | Stapled Joints |
| Board Quality | 250x180x250x180x250 GSM |
| Method of Closure | Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape |
| Tested by | ERRL PTE LTD |
| UN Packing Type Code | 4GV Packing Group I (X) |
4D-X300 UN APPROVED BOX
UN Certified Plywood Box for Dangerous Goods Packaging up to 210 kgs.
| External Dimensions (cms) | 180x120x75 (LxWxH) |
| Mass & Content | 210 Kgs |
| Measured Thickness | 12 mm |
| Manufacture Joints | Nailed |
| Max Package Gross Mass | 300 Kgs |
| Tare Weight | 94 Kgs |
| Tested by | ERRL PTE LTD |
| UN Packing Type Code | 4DV Packing Group I, II & III (X) |
— Salient Features
- India’s first C Flute for higher compression
- Any product can be loaded without any density restrictions as these boxes have been tested with mercury compounds and have a very high density of 1:13
- Certificate valid for Multi-Modal transportation including AIR & SEA (3-Years Validity)
- Heat-treated permanent marking
- 6 mandatory tests and 18 additional tests were carried out in Singapore by ERRL to ensure the boxes conform to UN specifications and standards
- Spot checks are done periodically from samples supplied in the market
- World-class slotting and automated computerized process
- Rejections are monitored and set to the lowest possible decimal
- Supply of Inner Packing Material
- Our boxes are ‘V-rated’, these boxes can be forwarded to any destination in the USA.
- Our boxes are also suitable for transporting psychotropic substances (Non-DG) due to their superior strength and design
- The glue/bonding used is superior and exclusive to our product, thus ensuring a world-class box & specifications exceed the UN base parameters
- Types of boxes: X-4, X-7,X-9, X-25, X-35, and X-55
Description
Hazmat Boxes or also known as UN Boxes must be packaged properly to ensure complete compliance of the DG Boxes. Our Hazmat 4G Boxes can be shipped via any shipping line, airline, courier services such as FedEx, UPS, provided they meet all the regulations for 4GV Packaging as per the protocol for the commodity. We offer 4G outer boxes and Dangerous Goods Packaging kits including inner UN Certified Boxes. vermiculite and cushioning/absorbent materials. Rest assured, we can provide exemplar services for virtually everything you need to get your products or samples packed and ready to ship.
Each of these heavy-duty double-walled UN Approved Boxes is designed to ship its respective commodity, tested according to the description provided within each product.
Tests Carried Out
Hazmat Boxes or also known as UN Boxes must be packaged properly to ensure complete compliance of the DG Boxes. Our Hazmat 4G Boxes can be shipped via any shipping line, airline, courier services such as FedEx, UPS, provided they meet all the regulations for 4GV Packaging as per the protocol for the commodity. We offer 4G outer boxes and Dangerous Goods Packaging kits including inner UN Certified Boxes. vermiculite and cushioning/absorbent materials. Rest assured, we can provide exemplar services for virtually everything you need to get your products or samples packed and ready to ship.
Each of these heavy-duty double-walled UN Approved Boxes is designed to ship its respective commodity, tested according to the description provided within each product.
