DG BOXES
UN APPROVED BOX

Our U.N. Approved Boxes are designed for 4GV Packaging to ship dangerous goods from Packing Groups I, II, III packed with inner containers containing solids or liquids, depending on the weight and regulation requirements of each material being contained.

Our DG Boxes are performance tested & certified by ERRL and are manufactured as per ICAO/IMDG 2021 compliance

VIEW ALL UN APPROVED BOXES

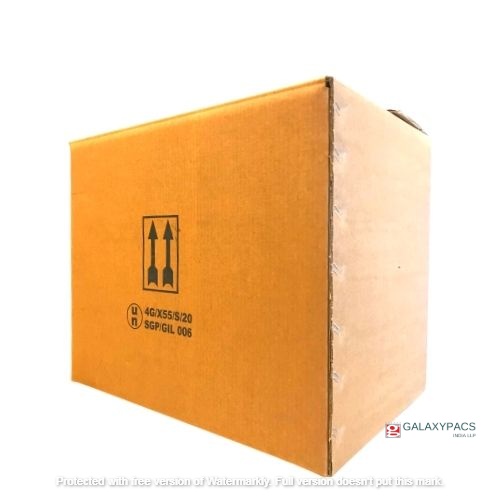

4G – X55
UN APPROVED BOX

UN Certified Fibreboard Box for Dangerous Goods Packaging up to 55 kgs.

External Dimensions (cms)	62x42x53 (LxWxH)
Mass & Content	55 Kgs
Measured Thickness	7.8 mm
Manufacture Joints	Stapled Joints
Board Quality	250x200x250x200x250 GSM
Method of Closure	Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape
Tested by	ERRL PTE LTD
UN Packing Type Code	4GV Packing Group I (X)

GET A QUOTE

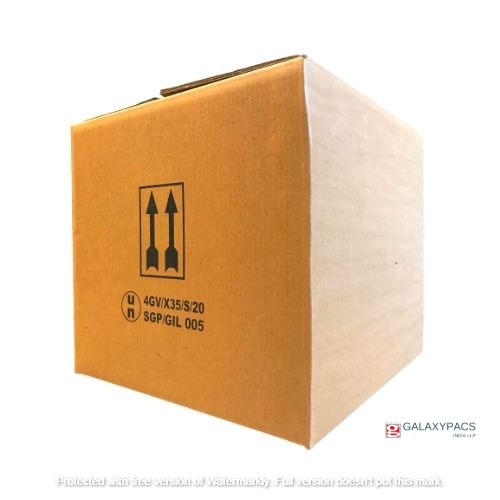

4GV X35
UN APPROVED BOX

UN Certified Fibreboard Box for Dangerous Goods Packaging up to 35 kgs.

External Dimensions (cms)	47x47x44 (LxWxH)
Mass & Content	35 Kgs
Measured Thickness	7.8 mm
Manufacture Joints	Stapled Joints
Board Quality	250x200x250x200x250 GSM
Method of Closure	Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape
Tested by	ERRL PTE LTD
UN Packing Type Code	4GV Packing Group I (X)

GET A QUOTE

4GV X25
UN APPROVED BOX

UN Certified Fibreboard Box for Dangerous Goods Packaging up to 25 kgs.

External Dimensions (cms)	38x38x45 (LxWxH)
Mass & Content	25 Kgs
Measured Thickness	7.8 mm
Manufacture Joints	Stapled Joints
Board Quality	250x200x250x200x250 GSM
Method of Closure	Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape
Tested by	ERRL PTE LTD
UN Packing Type Code	4GV Packing Group I (X)

GET A QUOTE

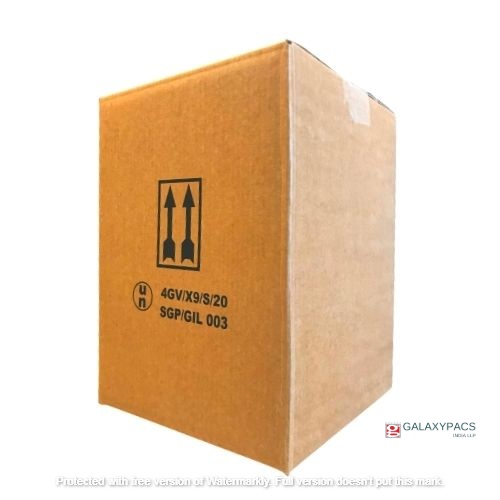

4GV X9
UN APPROVED BOX

UN Certified Fibreboard Box for Dangerous Goods Packaging up to 9 kgs.

External Dimensions (cms)	28x28x39 (LxWxH)
Mass & Content	09 Kgs
Measured Thickness	6.4 mm
Manufacture Joints	Stapled Joints
Board Quality	250x180x250x180x250 GSM
Method of Closure	Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape
Tested by	ERRL PTE LTD
UN Packing Type Code	4GV Packing Group I (X)

GET A QUOTE

4GV X7
UN APPROVED BOX

UN Certified Fibreboard Box for Dangerous Goods Packaging up to 7 kgs.

External Dimensions (cms)	23x23x37 (LxWxH)
Mass & Content	07 Kgs
Measured Thickness	6.4 mm
Manufacture Joints	Stapled Joints
Board Quality	250x180x250x180x250 GSM
Method of Closure	Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape
Tested by	ERRL PTE LTD
UN Packing Type Code	4GV Packing Group I (X)

GET A QUOTE

4GV X4
UN APPROVED BOX

UN Certified Fibreboard Box for Dangerous Goods Packaging up to 4 kgs.

External Dimensions (cms)	19x19x30 (LxWxH)
Mass & Content	04 Kgs
Measured Thickness	6.4 mm
Manufacture Joints	Stapled Joints
Board Quality	250x180x250x180x250 GSM
Method of Closure	Top, Bottom, Side Sealed with 3M #375 Pressure Sensitive Tape
Tested by	ERRL PTE LTD
UN Packing Type Code	4GV Packing Group I (X)

GET A QUOTE

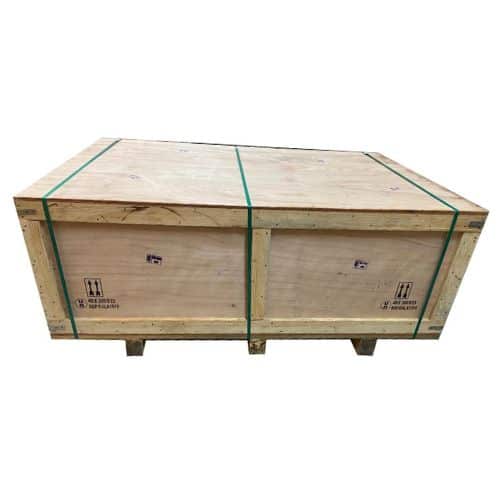

4D-X300
UN APPROVED BOX

UN Certified Plywood Box for Dangerous Goods Packaging up to 210 kgs.

External Dimensions (cms)	180x120x75 (LxWxH)
Mass & Content	210 Kgs
Measured Thickness	12 mm
Manufacture Joints	Nailed
Max Package Gross Mass	300 Kgs
Tare Weight	94 Kgs
Tested by	ERRL PTE LTD
UN Packing Type Code	4DV Packing Group I, II & III (X)

GET A QUOTE

Certified & packaging performance tested by

Salient Features

India’s first C Flute for higher compression
Any product can be loaded without any density restrictions as these boxes have been tested with mercury compounds and have a very high density of 1:13
Certificate valid for Multi-Modal transportation including AIR & SEA (3-Years Validity)
Heat-treated permanent marking
6 mandatory tests and 18 additional tests were carried out in Singapore by ERRL to ensure the boxes conform to UN specifications and standards
Spot checks are done periodically from samples supplied in the market
World-class slotting and automated computerized process
Rejections are monitored and set to the lowest possible decimal
Supply of Inner Packing Material
Our boxes are ‘V-rated’, these boxes can be forwarded to any destination in the USA.
Our boxes are also suitable for transporting psychotropic substances (Non-DG) due to their superior strength and design
The glue/bonding used is superior and exclusive to our product, thus ensuring a world-class box & specifications exceed the UN base parameters
Types of boxes: X-4, X-7,X-9, X-25, X-35, and X-55

Description

Hazmat Boxes or also known as UN Boxes must be packaged properly to ensure complete compliance of the DG Boxes. Our Hazmat 4G Boxes can be shipped via any shipping line, airline, courier services such as FedEx, UPS, provided they meet all the regulations for 4GV Packaging as per the protocol for the commodity. We offer 4G outer boxes and Dangerous Goods Packaging kits including inner UN Certified Boxes. vermiculite and cushioning/absorbent materials. Rest assured, we can provide exemplar services for virtually everything you need to get your products or samples packed and ready to ship.

Each of these heavy-duty double-walled UN Approved Boxes is designed to ship its respective commodity, tested according to the description provided within each product.

Tests Carried Out

Our UN Approved Boxes are tested by world-renowned ERRL for DG Packaging.

UN mark is a universal/international system created by the United Nations, which is meant for the classification, packaging, marking, and labeling of dangerous goods, in order to transport them safely in a fibreboard box (by road, rail, sea, and air). Testing is required to be carried out before a UN certification mark can be issued. The hazmat packaging for dangerous goods must meet or exceed minimum standards of performance before it can be used.

Get in Touch

Let us know if you are interested in getting a quotation for your next shipment
